ASP.NET Core with PostgreSQL and Entity Framework Core

This article shows how to use PostgreSQL with ASP.NET Core 1.0 using Entity Framework Core.

Code: VS2017 msbuild | VS2015 project.json

Posts in this series:

2017.02.10: Updated to VS2017 and msbuild
2016.12.01: Updated to ASP.NET Core 1.1
2016.07.02: Updated to ASP.NET Core RTM
2016.05.17: Updated to ASP.NET Core RC2 dotnet

The PostgreSQL Entity Framework 7 provider can be downloaded as a NuGet package. Add the NuGet package Npgsql.EntityFrameworkCore.PostgreSQL to your dependencies in the csproj file file.

<Project Sdk="Microsoft.NET.Sdk">

  <PropertyGroup>
    <TargetFramework>netcoreapp1.1</TargetFramework>
    <AssemblyName>DataAccessPostgreSqlProvider</AssemblyName>
    <PackageId>DataAccessPostgreSqlProvider</PackageId>
    <RuntimeFrameworkVersion>1.1.0</RuntimeFrameworkVersion>
    <PackageTargetFallback>$(PackageTargetFallback);dotnet5.6;portable-net45+win8</PackageTargetFallback>
    <GenerateAssemblyTitleAttribute>false</GenerateAssemblyTitleAttribute>
    <GenerateAssemblyDescriptionAttribute>false</GenerateAssemblyDescriptionAttribute>
    <GenerateAssemblyConfigurationAttribute>false</GenerateAssemblyConfigurationAttribute>
    <GenerateAssemblyCompanyAttribute>false</GenerateAssemblyCompanyAttribute>
    <GenerateAssemblyProductAttribute>false</GenerateAssemblyProductAttribute>
    <GenerateAssemblyCopyrightAttribute>false</GenerateAssemblyCopyrightAttribute>
  </PropertyGroup>

  <ItemGroup>
    <ProjectReference Include="..\DomainModel\DomainModel.csproj" />
  </ItemGroup>

  <ItemGroup>
    <PackageReference Include="Microsoft.AspNetCore.Diagnostics" Version="1.1.0" />
    <PackageReference Include="Microsoft.AspNetCore.Diagnostics.EntityFrameworkCore" Version="1.1.0" />
    <PackageReference Include="Microsoft.AspNetCore.Mvc" Version="1.1.0" />
    <PackageReference Include="Microsoft.AspNetCore.StaticFiles" Version="1.1.0" />
    <PackageReference Include="Microsoft.EntityFrameworkCore" Version="1.1.0" />
    <PackageReference Include="Microsoft.EntityFrameworkCore.Tools" Version="1.0.0-msbuild3-final" />
    <PackageReference Include="Microsoft.Extensions.Configuration.EnvironmentVariables" Version="1.1.0" />
    <PackageReference Include="Microsoft.Extensions.Configuration.Json" Version="1.1.0" />
    <PackageReference Include="Microsoft.Extensions.Logging" Version="1.1.0" />
    <PackageReference Include="Microsoft.Extensions.Logging.Console" Version="1.1.0" />
    <PackageReference Include="Microsoft.Extensions.Logging.Debug" Version="1.1.0" />
    <PackageReference Include="Microsoft.Extensions.Options.ConfigurationExtensions" Version="1.1.0" />
    <PackageReference Include="Npgsql.EntityFrameworkCore.PostgreSQL" Version="1.1.0" />
    <PackageReference Include="Npgsql.EntityFrameworkCore.PostgreSQL.Design" Version="1.1.0" />
  </ItemGroup>

</Project>

Create the context for Entity Framework Core which is used for the PostgreSQL database.

using System;
using System.Linq;
using DomainModel.Model;
using Microsoft.EntityFrameworkCore;

namespace DataAccessPostgreSqlProvider
{
    // >dotnet ef migration add testMigration in AspNet5MultipleProject
    public class DomainModelPostgreSqlContext : DbContext
    {
        public DomainModelPostgreSqlContext(DbContextOptions<DomainModelPostgreSqlContext> options) :base(options)
        {
        }

        public DbSet<DataEventRecord> DataEventRecords { get; set; }

        public DbSet<SourceInfo> SourceInfos { get; set; }

        protected override void OnModelCreating(ModelBuilder builder)
        {
            builder.Entity<DataEventRecord>().HasKey(m => m.DataEventRecordId);
            builder.Entity<SourceInfo>().HasKey(m => m.SourceInfoId);

            // shadow properties
            builder.Entity<DataEventRecord>().Property<DateTime>("UpdatedTimestamp");
            builder.Entity<SourceInfo>().Property<DateTime>("UpdatedTimestamp");

            base.OnModelCreating(builder);
        }

        public override int SaveChanges()
        {
            ChangeTracker.DetectChanges();

            updateUpdatedProperty<SourceInfo>();
            updateUpdatedProperty<DataEventRecord>();

            return base.SaveChanges();
        }

        private void updateUpdatedProperty<T>() where T : class
        {
            var modifiedSourceInfo =
                ChangeTracker.Entries<T>()
                    .Where(e => e.State == EntityState.Added || e.State == EntityState.Modified);

            foreach (var entry in modifiedSourceInfo)
            {
                entry.Property("UpdatedTimestamp").CurrentValue = DateTime.UtcNow;
            }
        }
    }
}

Add the POCO classes to use as entities.

public class DataEventRecord
{
	[Key]
	public long DataEventRecordId { get; set; }
	public string Name { get; set; }
	public string Description { get; set; }
	public DateTime Timestamp { get; set; }
	[ForeignKey("SourceInfoId")]
	public SourceInfo SourceInfo { get; set; }
	public long SourceInfoId { get; set; }
}
}

public class SourceInfo
{
	[Key]
	public long SourceInfoId { get; set; }
	public string Name { get; set; }
	public string Description { get; set; }
	public DateTime Timestamp { get; set; }
	public List<DataEventRecord> DataEventRecords { get; set; }
}

The connection string can be added in the OnConfiguring method in the class which implements the DbContext, or via dependency injection in the constructor using the options. The connection string property User ID needs to exist in the database and should have the create database rights.

{
    "ConnectionStrings": {
        "DataAccessPostgreSqlProvider":  "User ID=damienbod;Password=1234;Host=localhost;Port=5432;Database=damienbod;Pooling=true;"
        }
    }
}

Open pgAdmin to configure the user in PostgreSQL.

EF7_PostgreSQL_01

Right click your user and click propeties to set the password

EF7_PostgreSQL_02

Set up the migration scripts now. Open the command line in the same folder where the context is added in the Startup.

>
> dotnet ef migrations add testPG
>
> dotnet ef database update
>

The database should now exist. Add Entity Framework 7 to the ASP.NET Core RC2 application in the Startup class. A DataAccessPostgreSqlProvider class with an interface is used to access the context from anywhere else in the application.

public void ConfigureServices(IServiceCollection services)
{
	// Use a PostgreSQL database
	var sqlConnectionString = Configuration.GetConnectionString("DataAccessPostgreSqlProvider");

	services.AddDbContext<DomainModelPostgreSqlContext>(options =>
		options.UseNpgsql(
			sqlConnectionString,
			b => b.MigrationsAssembly("AspNet5MultipleProject")
		)
	);

	services.AddScoped<IDataAccessProvider, DataAccessPostgreSqlProvider.DataAccessPostgreSqlProvider>();

	JsonOutputFormatter jsonOutputFormatter = new JsonOutputFormatter
	{
		SerializerSettings = new JsonSerializerSettings
		{
			ReferenceLoopHandling = ReferenceLoopHandling.Ignore
		}
	};

	services.AddMvc(
		options =>
		{
			options.OutputFormatters.Clear();
			options.OutputFormatters.Insert(0, jsonOutputFormatter);
		}
	);
}

Now the PostgreSQL provider can be used in a MVC 6 controller using construction injection.

using System.Collections.Generic;
using DomainModel;
using DomainModel.Model;
using Microsoft.AspNetCore.Mvc;
using Newtonsoft.Json;

namespace AspNet5MultipleProject.Controllers
{
    [Route("api/[controller]")]
    public class DataEventRecordsController : Controller
    {
        private readonly IDataAccessProvider _dataAccessProvider;

        public DataEventRecordsController(IDataAccessProvider dataAccessProvider)
        {
            _dataAccessProvider = dataAccessProvider;
        }

        [HttpGet]
        public IEnumerable<DataEventRecord> Get()
        {
            return _dataAccessProvider.GetDataEventRecords();
        }

        [HttpGet]
        [Route("SourceInfos")]
        public IEnumerable<SourceInfo> GetSourceInfos(bool withChildren)
        {
            return _dataAccessProvider.GetSourceInfos(withChildren);
        }

        [HttpGet("{id}")]
        public DataEventRecord Get(long id)
        {
            return _dataAccessProvider.GetDataEventRecord(id);
        }

        [HttpPost]
        public void Post([FromBody]DataEventRecord value)
        {
            _dataAccessProvider.AddDataEventRecord(value);
        }

        [HttpPut("{id}")]
        public void Put(long id, [FromBody]DataEventRecord value)
        {
            _dataAccessProvider.UpdateDataEventRecord(id, value);
        }

        [HttpDelete("{id}")]
        public void Delete(long id)
        {
            _dataAccessProvider.DeleteDataEventRecord(id);
        }
    }
}

The controller api can be called using Fiddler:

POST http://localhost:5000/api/dataeventrecords HTTP/1.1
User-Agent: Fiddler
Host: localhost:5000
Content-Length: 135
Content-Type: application/json;

{
  "DataEventRecordId":3,
  "Name":"Funny data",
  "Description":"yes",
  "Timestamp":"2015-12-27T08:31:35Z",
   "SourceInfo":
  {
    "SourceInfoId":0,
    "Name":"Beauty",
    "Description":"second Source",
    "Timestamp":"2015-12-23T08:31:35+01:00",
    "DataEventRecords":[]
  },
 "SourceInfoId":0
}

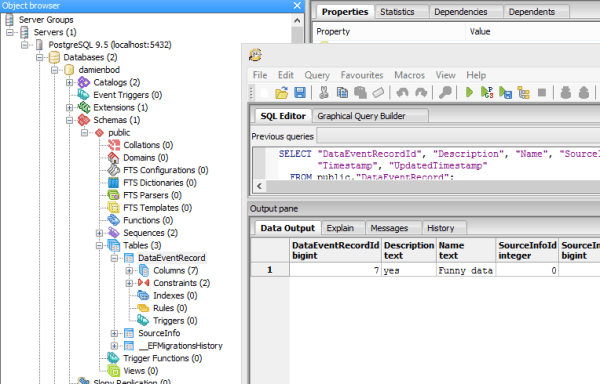

The data can be viewed now in PostgreSQL.

EF7_PostgreSQL_03

PostgreSQL is a great choice for a rational database if you what to support multiple runtime environments.

Links:

Announcing Entity Framework Core 1.1

Announcing Entity Framework Core RC2

http://www.postgresql.org

http://www.pgadmin.org/

https://github.com/npgsql/npgsql

http://www.npgsql.org/doc/ef7.html

https://damienbod.com/2016/01/07/experiments-with-entity-framework-7-and-asp-net-5-mvc-6/
