Exploring Web API Exception Handling

In this article, exception handling is explored for Web API. The standard features from Web API 2 are shown as well as the global exception handling released in version 2.1.

code: https://github.com/damienbod/WebApi2_1ExceptionHandling

Using the HttpResponseException class

The following two examples demonstrates how the HttpResponseException class can be used in simple action methods. The HttpStatusCode enum can be used to set the response code.

The first example returns a 301 (Paged moved exception) when the url ../exception/Moved is called.

[RoutePrefix("exception")]
public class ValuesController : ApiController
{

 [HttpGet]
 [Route("Moved")]
 public IEnumerable<string> GetBasicException()
 {
   throw new HttpResponseException(HttpStatusCode.Moved);
   return new string[] { "value1", "value2" };
 }
}

As the results show underneath, the HTTP status code can be set as required.
webapiEx01

This second example returns a bad request example if the id is larger than 3 with a HttpResponseMessage class as the HttpResponseException parameter.

../exception/bad/34

[Route("bad/{id}")]
[HttpGet]
public int Get(int id)
{
 if (id > 3)
 {
   var resp = new HttpResponseMessage(HttpStatusCode.BadRequest)
   {
     Content = new StringContent(string.Format("id > 3, your value: {0}", id)),
     ReasonPhrase = "Your id is too big"
   };
   throw new HttpResponseException(resp);
 }
 return id;
}

The results show that the message in the HttpResponseMessage is returned to the http client.

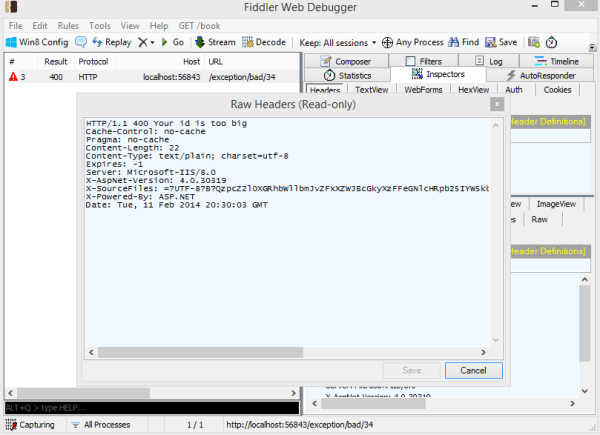

webapiEx02

Using Exception Filters

Exception Filters can be used to handle unhandled exceptions per controller. These are registered in the filter provider in the Web API config.

using System.ComponentModel.DataAnnotations;
using System.Net;
using System.Net.Http;
using System.Web.Http;
using System.Web.Http.Filters;

namespace WebApi2_1ExceptionHandling.Attributes
{
    public class ValidationExceptionFilterAttribute : ExceptionFilterAttribute
    {
        public override void OnException(HttpActionExecutedContext context)
        {
            if (context.Exception is ValidationException)
            {
                var resp = new HttpResponseMessage(HttpStatusCode.BadRequest)
                {
                    Content = new StringContent(context.Exception.Message),
                    ReasonPhrase = "ValidationException"
                };
                throw new HttpResponseException(resp);

            }
        }
    }
}

The WebApiConfig class in the App_Start folder is used to add the filter.

config.Filters.Add(new ValidationExceptionFilterAttribute());

And the filter can then be used in a controller.

[Route("filter/{id}")]
[HttpGet]
[ValidationExceptionFilter]
public int GetWithFilterValidation(int id)
{
  if (id > 3)
  {
     throw new ValidationException(string.Format("Your id is too big, your value: {0}", id));
  }

  return id;
}

The action method contains no exception logic, this is all in the exception filter attribute class. The action method has just an attribute. When the URL is called from the client, the ValidationException is thrown in the action method. This is then handled in the ExceptionFilter and returned as a Bad Request.

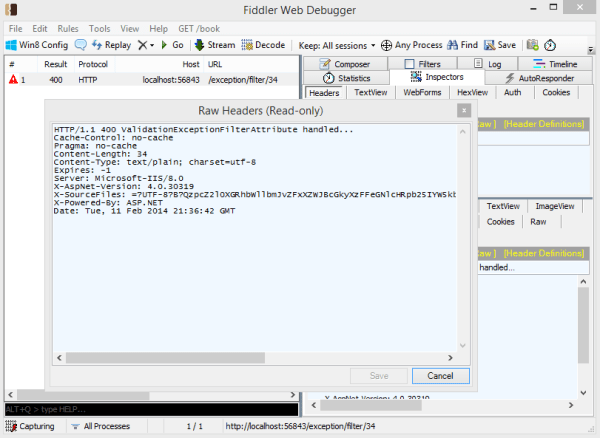

webapiEx03

NOTE: Even though the ValidationExceptionFilterAttribute class is defined on a separate action method, it is used for all action methods defined in the controller class. The following action method example will also result in the filter logic being executed, even though it has no attribute defined directly on the method or on the controller class.

 [Route("unhandledValidation/{id}")]
 [HttpGet]
 public int GetWithGlobalValidation(int id)
 {
   if (id > 3)
   {
     throw new ValidationException(string.Format("Your id is too big, your value: {0}", id));
   }

   return id;
 }

Logging unhandled exceptions

The ExceptionLogger class which inherits from the IExceptionLogger interface can be used to log all unhandled exceptions. If an unhandled exception occurs, the Log method will be called directly after the exception and before all ExceptionFilter attributes defined for the controller.

using System.Web.Http.ExceptionHandling;
using WebApi2_1ExceptionHandling.Log;

namespace WebApi2_1ExceptionHandling
{
    public class SlabLogExceptionLogger : ExceptionLogger
    {
        public override void Log(ExceptionLoggerContext context)
        {
            TestEvents.Log.UnhandledException(
                context.Request.Method.ToString(),
                context.Request.RequestUri.ToString(),
                context.Exception.Message);
        }
    }
}

The IExceptionLogger implementations are added to the config.Services in the WebApiConfig class. You can add as many as you require.

using System.Diagnostics.Tracing;
using System.Web.Http;
using System.Web.Http.ExceptionHandling;
using Microsoft.Practices.EnterpriseLibrary.SemanticLogging;
using Slab.Elasticsearch;
using WebApi2_1ExceptionHandling.Attributes;
using WebApi2_1ExceptionHandling.Log;

namespace WebApi2_1ExceptionHandling
{
    public static class WebApiConfig
    {
        public static void Register(HttpConfiguration config)
        {
            ObservableEventListener listener = new ObservableEventListener();
            listener.EnableEvents(TestEvents.Log, EventLevel.LogAlways, Keywords.All);

            listener.LogToConsole();
            listener.LogToElasticsearchSink("Server=localhost;Index=log;Port=9200", "slab", "WebApiEvent");

            config.MapHttpAttributeRoutes();

            config.Filters.Add(new ValidationExceptionFilterAttribute());
            config.Services.Add(typeof(IExceptionLogger),  new SlabLogExceptionLogger());
            config.Services.Replace(typeof (IExceptionHandler), new GlobalExceptionHandler());

        }
    }
}

In this example, the exception is logged using semantic.logging to a elasticsearch persistence.

Global IExceptionHandler

The IExceptionHandler handles all unhandled exceptions from all controllers. This is the last in the list. If an exception occurs, the IExceptionLogger will be called first, then the controller ExceptionFilters and if still unhandled, the IExceptionHandler implementation.

using System.ComponentModel.DataAnnotations;
using System.Net;
using System.Net.Cache;
using System.Net.Http;
using System.Threading;
using System.Threading.Tasks;
using System.Web.Http;
using System.Web.Http.ExceptionHandling;
using System.Web.Http.Results;

namespace WebApi2_1ExceptionHandling
{
    public class GlobalExceptionHandler : ExceptionHandler
    {
        public override void Handle(ExceptionHandlerContext context)
        {
            if (context.Exception is ValidationException)
            {
                var resp = new HttpResponseMessage(HttpStatusCode.BadRequest)
                {
                    Content = new StringContent(context.Exception.Message),
                    ReasonPhrase = "ValidationException"
                };

                context.Result = new ErrorMessageResult(context.Request, resp);
            }
            else
            {
                // Do something here...
            }
        }

        public class ErrorMessageResult : IHttpActionResult
        {
            private HttpRequestMessage _request;
            private HttpResponseMessage _httpResponseMessage;


            public ErrorMessageResult(HttpRequestMessage request, HttpResponseMessage httpResponseMessage)
            {
                _request = request;
                _httpResponseMessage = httpResponseMessage;
            }

            public Task<HttpResponseMessage> ExecuteAsync(CancellationToken cancellationToken)
            {
                return Task.FromResult(_httpResponseMessage);
            }
        }
    }
}

In the Web API config, the IExceptionHandler has to be replaced unlike the IExceptionLogger. Only 1 IExceptionHandler can be used for the service. This IExceptionHandler will only be called if the service can still define a response. IExceptionLogger will always be called.

config.Services.Replace(typeof (IExceptionHandler), new GlobalExceptionHandler());

IoC with IExceptionHandler, IExceptionLogger, IFilterProvider

When adding an IoC for these elements, you need to add the container in the constructor of the IExceptionLogger, IExceptionHandler or IFilterProvider. See https://damienbod.wordpress.com/2014/01/04/web-api-2-using-actionfilterattribute-overrideactionfiltersattribute-and-ioc-injection/ for details on how to do this.

HTTP status codes for REST
brockallen has created a great post showing when to use which code.

HttpError class
This class can be used to return error information in a serializable container. It is just a key/pair collection. This class can be used in the Request.CreateResponse method which returns a HttpResponseMessage.

Here’s an example:

        [Route("HttpError/{id}")]
        [HttpGet]
        public HttpResponseMessage GetProduct(int id)
        {
            if (id > 3)
            {
                var message = string.Format("id > 3 {0} ", id);
                HttpError err = new HttpError(message);
                err["error_id_Validation"] = 300;
                return Request.CreateResponse(HttpStatusCode.BadRequest, err);
            }
            else
            {
                return Request.CreateResponse(HttpStatusCode.OK, id);
            }
        }

The ApiContoller class also includes some methods for returning common HTTP status codes, for example InternalServerError() or InternalServerError(Exception). These methods can be used instead of HttpResponseException.

Links:

http://www.asp.net/web-api/overview/web-api-routing-and-actions/exception-handling

http://aspnetwebstack.codeplex.com/wikipage?title=Global%20Error%20Handling&referringTitle=Specs

http://www.asp.net/web-api/overview/web-api-routing-and-actions/attribute-routing-in-web-api-2

http://www.asp.net/web-api/overview/releases/whats-new-in-aspnet-web-api-21

http://blogs.msdn.com/b/amyd/archive/2014/02/06/response-400-bad-request-on-long-url.aspx?CommentPosted=true#commentmessage

http://stackoverflow.com/questions/10655350/returning-http-status-code-from-asp-net-mvc-4-web-api-controller

http://stephenwalther.com/archive/2012/03/05/introduction-to-the-asp-net-web-api

http://www.prideparrot.com/blog/archive/2012/3/creating_a_rest_service_using_asp_net_web_api

http://soabubblog.wordpress.com/2013/07/07/web-api-httpresponsemessage/
