Create Certificates for IdentityServer4 signing using .NET Core

This article shows how to create certificates for an IdentityServer4 application to use for signing and token validation. The certificates are created using the CertificateManager nuget package. Both RSA and ECDsa certificates can be used for signing in IdentityServer4.

Code: Certificates for IdentityServer4 signing using .NET Core

Creating the Certificates in .NET Core

A simple .NET Core console application is used to create the certificates. This type of application can run on most of the standard operating systems. Create a new console application and add the package CertificateManager. The package Microsoft.Extensions.DependencyInjection is also required to initialize the package.

<Project Sdk="Microsoft.NET.Sdk">

 <PropertyGroup>
  <OutputType>Exe</OutputType>
  <TargetFramework>netcoreapp3.1</TargetFramework>
 </PropertyGroup>

 <ItemGroup>
  <PackageReference Include="CertificateManager" Version="1.0.3" />
  <PackageReference Include="Microsoft.Extensions.DependencyInjection" Version="3.1.1" />
 </ItemGroup>

</Project>

Creating a RSA certificate

A self signed RSA certificate can be created using the CertificateManager NewRsaSelfSignedCertificate method. The key size must be at least 2048. The following example also adds TLS server and client authentication OID extensions, so that the certificate could also be used for client authentication.

public static X509Certificate2 CreateRsaCertificate(
	string dnsName, int validityPeriodInYears)
{
	var basicConstraints = new BasicConstraints
	{
		CertificateAuthority = false,
		HasPathLengthConstraint = false,
		PathLengthConstraint = 0,
		Critical = false
	};

	var subjectAlternativeName = new SubjectAlternativeName
	{
		DnsName = new List<string>{ dnsName }
	};

	var x509KeyUsageFlags = X509KeyUsageFlags.DigitalSignature;

	// only if certification authentication is used
	var enhancedKeyUsages = new OidCollection
	{
		new Oid("1.3.6.1.5.5.7.3.1"),  // TLS Server auth
		new Oid("1.3.6.1.5.5.7.3.2"),  // TLS Client auth
	};

	var certificate = _cc.NewRsaSelfSignedCertificate(
		new DistinguishedName { CommonName = dnsName },
		basicConstraints,
		new ValidityPeriod
		{
			ValidFrom = DateTimeOffset.UtcNow,
			ValidTo = DateTimeOffset.UtcNow.AddYears(validityPeriodInYears)
		},
		subjectAlternativeName,
		enhancedKeyUsages,
		x509KeyUsageFlags,
		new RsaConfiguration { KeySize = 2048 }
	);

	return certificate;
}

Creating a ECDsa certificate

A self signed ECDsa certificate can be created using the CertificateManager NewECDsaSelfSignedCertificate method.

public static X509Certificate2 CreateECDsaCertificate(
	string dnsName, int validityPeriodInYears)
{
	var basicConstraints = new BasicConstraints
	{
		CertificateAuthority = false,
		HasPathLengthConstraint = false,
		PathLengthConstraint = 0,
		Critical = false
	};

	var san = new SubjectAlternativeName
	{
		DnsName = new List<string>{ dnsName }
	};

	var x509KeyUsageFlags = X509KeyUsageFlags.DigitalSignature;

	// only if certification authentication is used
	var enhancedKeyUsages = new OidCollection {
		new Oid("1.3.6.1.5.5.7.3.1"),  // TLS Server auth
		new Oid("1.3.6.1.5.5.7.3.2"),  // TLS Client auth
	};

	var certificate = _cc.NewECDsaSelfSignedCertificate(
		new DistinguishedName { CommonName = dnsName },
		basicConstraints,
		new ValidityPeriod
		{
			ValidFrom = DateTimeOffset.UtcNow,
			ValidTo = DateTimeOffset.UtcNow.AddYears(validityPeriodInYears)
		},
		san,
		enhancedKeyUsages,
		x509KeyUsageFlags,
		new ECDsaConfiguration());

	return certificate;
}

Creating and exporting the pfx files

The RSA and the ECDsa certificate can then be created and exported as a pfx file.

static CreateCertificates _cc;

static void Main(string[] args)
{
	var sp = new ServiceCollection()
	   .AddCertificateManager()
	   .BuildServiceProvider();

	_cc = sp.GetService<CreateCertificates>();

	var rsaCert = CreateRsaCertificate("localhost", 10);
	var ecdsaCert = CreateECDsaCertificate("localhost", 10);

	string password = "1234";
	var iec = sp.GetService<ImportExportCertificate>();

	var rsaCertPfxBytes =
		iec.ExportSelfSignedCertificatePfx(password, rsaCert);
	File.WriteAllBytes("rsaCert.pfx", rsaCertPfxBytes);

	var ecdsaCertPfxBytes =
		iec.ExportSelfSignedCertificatePfx(password, ecdsaCert);
	File.WriteAllBytes("ecdsaCert.pfx", ecdsaCertPfxBytes);
}

Using the Certificates in IdentityServer4

The certificate pfx exports can then be used in IdentityServer4. Depending on how you deploy the web application which contains the IdentityServer4 library, you would choose the best way to load the certificates into the application, for example a thumbprint which loads from the host operating system, or a certificate loaded from Key Vault in Azure.

If using a RSA certificate, you can load this directly using the AddSigningCredential IdentityServer4 extension method.

var rsaCertificate = new X509Certificate2(
	Path.Combine(_environment.ContentRootPath, "rsaCert.pfx"), "1234");

services.AddIdentityServer()
	.AddSigningCredential(rsaCertificate) // rsaCertificate
	.AddInMemoryIdentityResources(Config.GetIdentityResources())
	.AddInMemoryApiResources(Config.GetApiResources())
	.AddInMemoryClients(Config.GetClients())
	.AddAspNetIdentity<ApplicationUser>()
	.AddProfileService<IdentityWithAdditionalClaimsProfileService>();

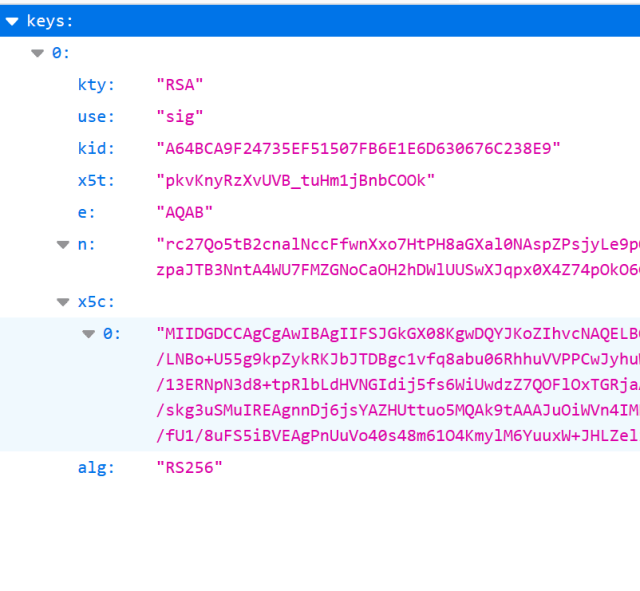

using the jwks endpoint, you can view the certificate public details used for validation:

/.well-known/openid-configuration/jwks

When using an ECDsa certificate, you need to create a ECDsaSecurityKey instance from the ECDsa certificate private key. This can then be used as a parameter in the AddSigningCredential method.

var ecdsaCertificate = new X509Certificate2(
	Path.Combine(_environment.ContentRootPath, "ecdsaCert.pfx"), "1234");

ECDsaSecurityKey ecdsaCertificatePublicKey
	= new ECDsaSecurityKey(ecdsaCertificate.GetECDsaPrivateKey());

services.AddIdentityServer()
	.AddSigningCredential(ecdsaCertificatePublicKey, "ES256")
	.AddInMemoryIdentityResources(Config.GetIdentityResources())
	.AddInMemoryApiResources(Config.GetApiResources())
	.AddInMemoryClients(Config.GetClients())
	.AddAspNetIdentity<ApplicationUser>()
	.AddProfileService<IdentityWithAdditionalClaimsProfileService>();

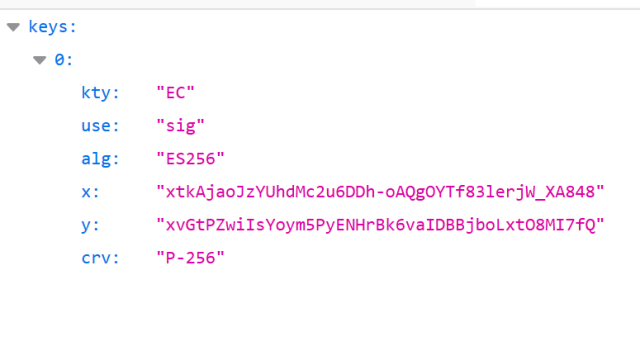

The jwks endpoint uses an EC certificate.

Links:

https://github.com/damienbod/AspNetCoreCertificates

https://www.nuget.org/packages/CertificateManager/

http://docs.identityserver.io/en/latest/topics/crypto.html

http://docs.identityserver.io/en/latest/topics/mtls.html

https://docs.microsoft.com/en-us/dotnet/core/get-started
