Web API OData V4 Cache Part 9

This article shows how easy it is to implement cache with Web API OData. Web API OData V4 now supports Etag and also If-None-Match HTTP headers. These can then be accessed and set using the ODataQueryOptions inside an OData controller. This works well and could be a possible solution if you want to implement everything yourself. Another possible solution is CacheCow from Ali Kheyrollahi. This post is part 9 of the Web API OData V4 series.

Part 1 Getting started with Web API and OData V4 Part 1.
Part 2 Web API and OData V4 Queries, Functions and Attribute Routing Part 2
Part 3 Web API and OData V4 CRUD and Actions Part 3
Part 4 Web API OData V4 Using enum with Functions and Entities Part 4
Part 5 Web API OData V4 Using Unity IoC, SQLite with EF6 and OData Model Aliasing Part 5
Part 6 Web API OData V4 Using Contained Models Part 6
Part 7 Web API OData V4 Using a Singleton Part 7
Part 8 Web API OData V4 Using an OData T4 generated client Part 8
Part 9 Web API OData V4 Caching Part 9
Part 10 Web API OData V4 Batching Part 10
Part 11 Web API OData V4 Keys, Composite Keys and Functions Part 11

Code: https://github.com/damienbod/WebAPIODataV4SQLite

Using CacheCow with Web API Odata V4

This is very simple. Just add the CacheCow Server NuGet package to your server project.

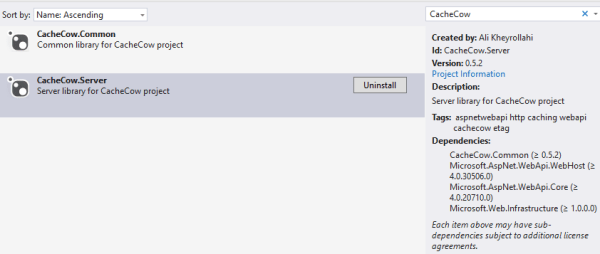

webapiOdataCache_01

Then add the CacheCow MessageHandler to the config:

var cacheCowCacheHandler = new CachingHandler(config);
config.MessageHandlers.Add(cacheCowCacheHandler);

Now all controllers including the OData controllers will use in memory cache from CacheCow.

You can test this with Fiddler. The first time you request a resource, you will recieve an Etag in the response header

ETag: W/”002a41972c3d43f0bb14d033907b3f41″

If you send this in your next request in the header, you will recieve a Http 304 which tells the client you already have the resource.

If-None-Match : W/”002a41972c3d43f0bb14d033907b3f41″

webapiOdataCache_02

This all happens automatically in your browser. You can check this in Firefox with Firebug.

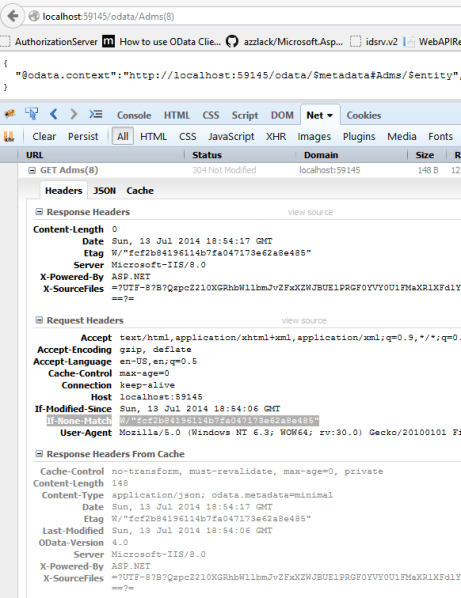

webapiOdataCache_03

CacheCow also provides persistent cache solutions with different providers and also client caching solutions. Before you start implementing everything yourself with Etag and If-None-Match HTTP Headers, I would recommend looking at CacheCow first.

Links:

http://aspnet.codeplex.com/SourceControl/latest#Samples/WebApi/OData/v4/ODataEtagSample/

https://damienbod.wordpress.com/2014/05/18/exploring-web-api-2-caching/

http://bitoftech.net/2014/02/08/asp-net-web-api-resource-caching-etag-cachecow/

http://byterot.blogspot.ch/

http://blogs.msdn.com/b/webdev/archive/2014/03/13/getting-started-with-asp-net-web-api-2-2-for-odata-v4-0.aspx

5 comments

  1. Great article on caching with WebAPI OData! Brief introduction, easy to understand and all links one need!🙂

  2. Reblogged this on Robin Sedlaczek's Blog and commented:
    Great article in WebAPI caching!

    1. Cheers Thanks
      greetings Damien

  3. Hi Damien,
    I’ve been using your Web API post series to implement my Web API OData 4 server. Your posts have proven invaluable! For thank I thank you many times!

    I just read part 9 of your series (Caching) and while I haven’t yet installed CacheCow in my project I’m intrigued by the following comment in CacheCow’s github page (https://github.com/aliostad/CacheCow):

    NOTE

    Currently CacheCow’s attribute setting does not work with Attribute Routing. And I personally think you should not use Attribute Routing…

    In part 2 of your series you mention that the way to access the different queries we have to use Attribute Routing (and actually only after correctly applying it I was able to start using my queries).

    Having said that, I ask you…what is your take on the note by CacheCow’s people? And what should happen if I have attribute routing and I install CacheCow?

    Thanks again!!
    Mateo
